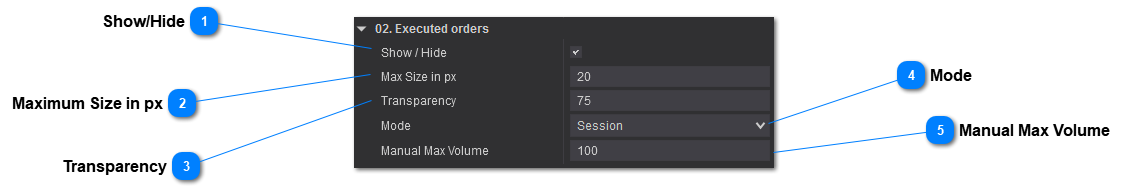

Limit Order Visualizer Executed Orders

Limit Order Visualizer Executed Orders


1

Show/Hide

1. Show/Hide
Set the visibility of the executed orders / trades.
2

Maximum Size in px

2. Maximum Size in px
Sets the maximum size of the trades circle in pixels.
3

Transparency

3. Transparency
Sets the value of the transparency for the executed orders circles. The value ranges from 0= total transparency to 100= total opacity.
4

Mode

4. Mode

  • Manual

    – Set the expected  maximum for executed orders.  This mode inherits the value from Manual Max Volume.

  • Session

    – Sets the the maximum relative to the latest session. Useful to see executed orders in relation to the start of the session, thus providing a session context for your analyses.

  • Chart

    – Sets the maximum volume to the largest executed order on the visible chart range. Useful to review certain time slices independently.
5

Manual Max Volume

5. Manual Max Volume
Sets the the maximum volume when manual mode is enabled. This will be the value that references the maximum volume.
