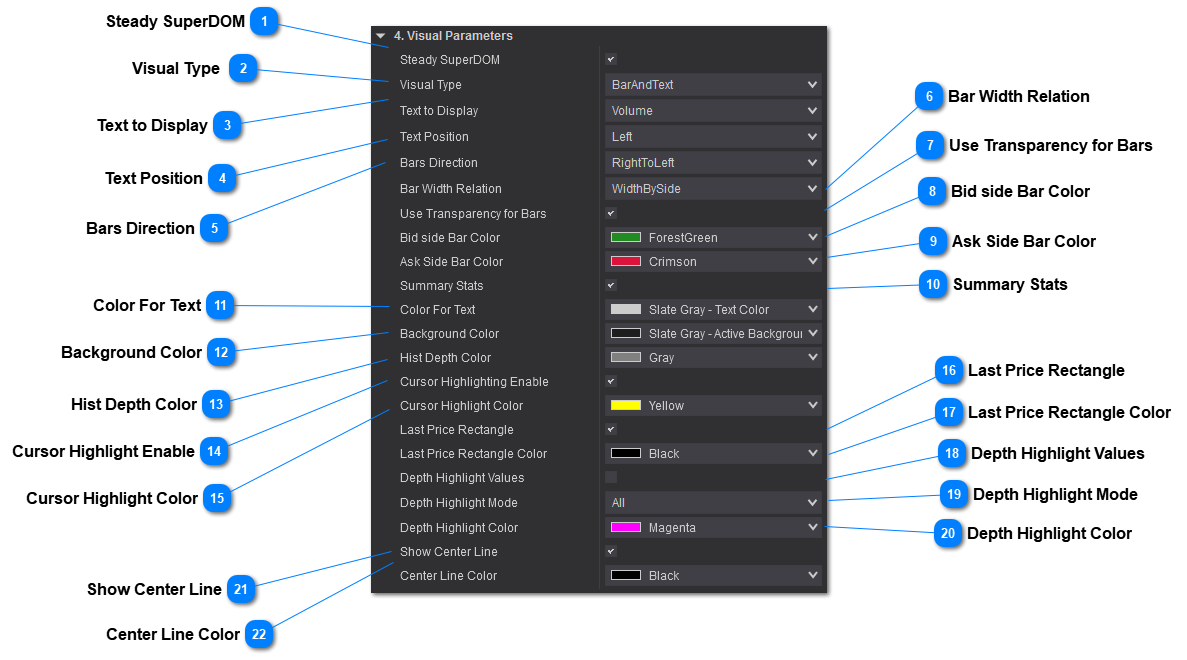

Bar and Text – display both the Bar in its relative size as well as any text chose in the previous setting.
Bar – display only bars. On Mouse Hover text will be displayed for the particular price.
Text – display only text.
Text to Display
Volume – Display the raw limit order values.
Percentage by Book – Display the percentage of limit orders by price taking into account the whole book (all market depth levels).
Percentage by Side – Display the percentage of limit orders by price and by each of the sides.
Text Position
Sets the position of the Text Relative to the cell.
Bars Direction
Left to Right – Bars will start from the left end and populate to the right.
Right To Left – Bars will start from the right and populate to the left.
Bar Width Relation
Width by Side – The bars will adjust according to their side.
Width By Book – The bars will adjust according to the whole OrderBook. Useful to get immediate visual feedback of outliers and the representation of the orderbook as a whole. Also useful in combination with Number of Levels setting allowing you to see the changes near the bid and ask prices.
Use Transparency for Bars
Transparency is set relative to the total amount of levels defined for the depth column. With Transparency On, you get instant feedback of orders being removed and big pending orders coming to the market.
Bid side Bar Color
Sets the color for the bars on the Bid side market depth.
Ask Side Bar Color
Sets the color for the bars on the Ask side market depth.
Summary Stats
Display Summary Statistics for the Depth Column.
Sum – Total amount of limit orders of the OrderBook. Inherits the color from the Imbalance Colors.
Current Imbalance Ratio – Show the imbalance ratio. Inherits the color from the Imbalance Colors.
OrderBook Delta – Displays the difference between the total quantity on the bid side minus the total quantity of limit orders of the ask side.
Total Ask Limit Orders – Displays the total amount of orders at the ask side. Inherits the color from the OrderBook Delta and the Ask Side Bid side bar color.
Total Bid Limit Orders – Displays the total amount of orders at the bid side.
Average Ask Limit Orders – Display the average amount of orders at the ask side.
Average Bid Limit Orders – Display the average amount of orders at the bid side.
